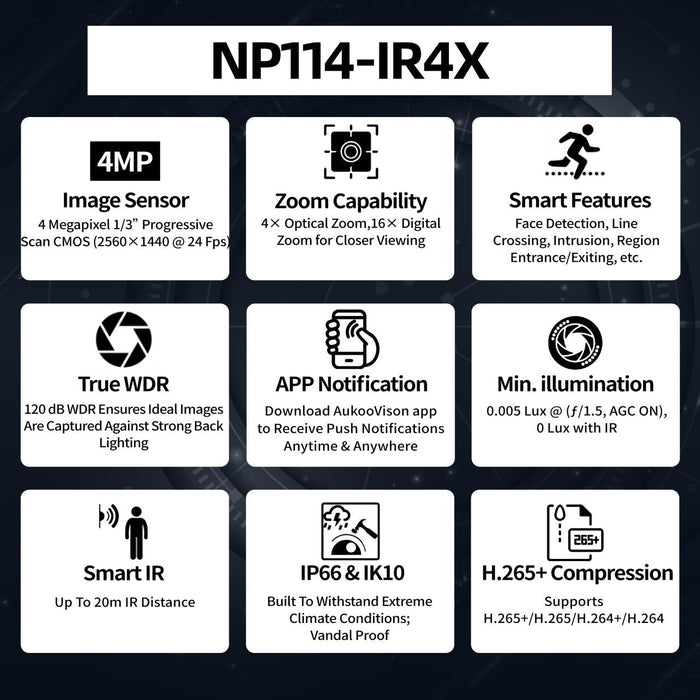

Main Features

• 4X optical zoom, 16X digital zoom
• 120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus

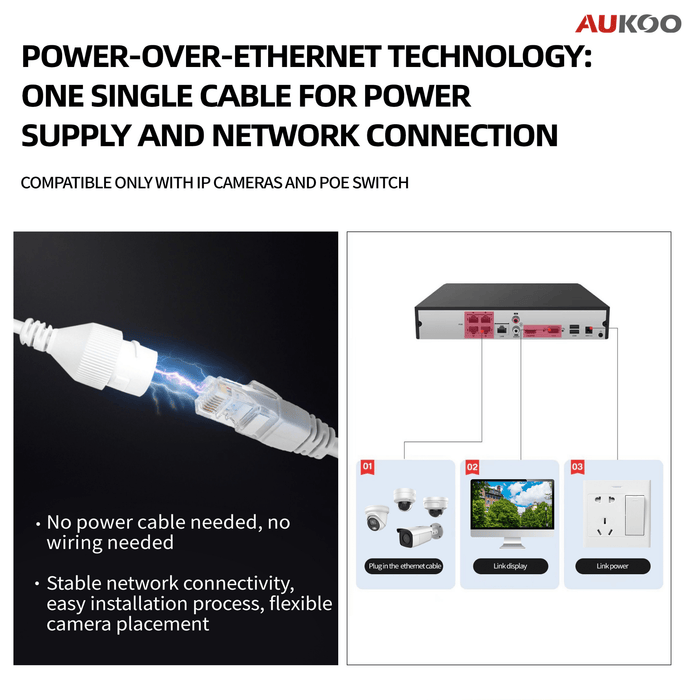

• 12 VDC & PoE
• IR Cut Filter, up to 20 m IR distance
• IK10, IP66

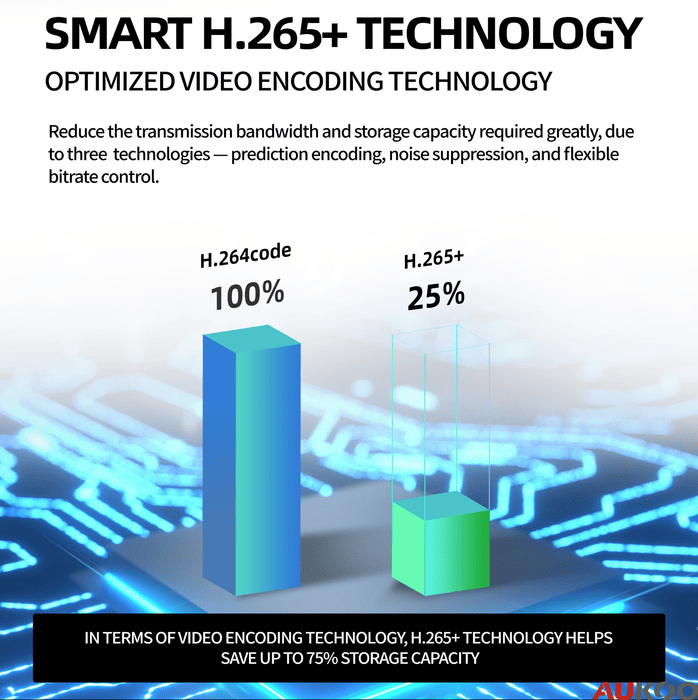

• Support H.265+/H.265 video compression
• 0° to 330°  Movement Range (Pan)
• 2 years Warranty

Display & Graphics

• Effective Camera Resolution:  2560 X 1440@25fps
• Image Sensor: 1/3" progressive scan CMOS
• Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 Lux with IR
• Shutter Speed: 50Hz: 1/1 s to 1/30,000 s; 60Hz: 1/1 s to 1/30,000 s

Physical Characteristics:

• Form Factor: PTZ
• Dimension: 130.7 mm X 101.7 mm (5.15" X 4.00")
• Weight: 0.53 kg (1.17 lb)
• Operating Conditions: -20 °C - 60 °C, Humidity 90% or less
• Power Supply:12 VDC & PoE;  12 W (Max. 3.9 W for IR)

Accessories:

Download Data Sheet
