8 MP 4K Turret TVI Camera AC328-FD4

Original price - Original price
Original price
-
Current price

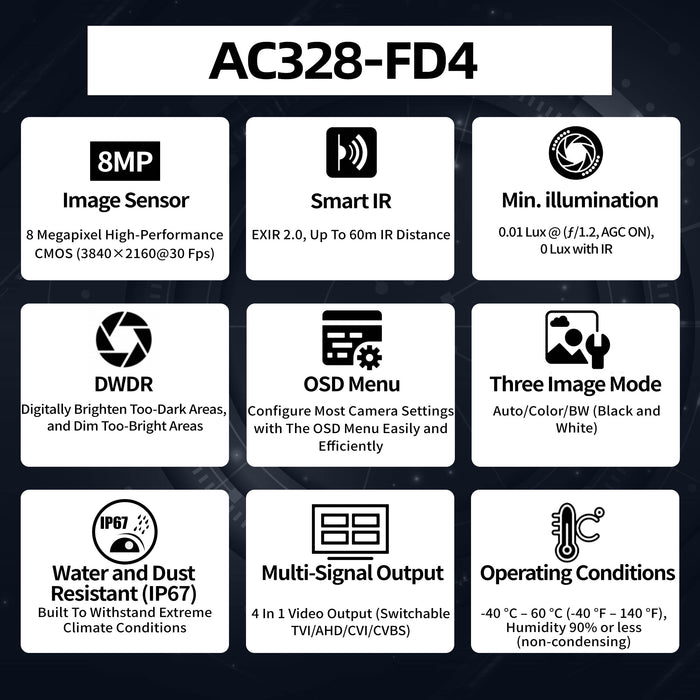

Main Features

AC328-FD4 is a 8MP 4K Turret TVI Camera with 3840 × 2160 resolution. This model  is a wow cost and affordable solution for various surveillance applications.

  • 8.29 MP high-performance CMOS
  • 3840 × 2160 resolution
  • 2.8 mm, 3.6 mm, 6 mm fixed lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC-C)
  • 2 Years Warranty

Display & Graphics

Perfect Imagery Capturing - Advanced Digital Image System is a concept with a goal to improve surveillance and deliver the highest level of image quality

  • Effective Camera Resolution: 3840(H) x 2160(V)
  • Image Sensor: 2MP CMOS Image Sensor
  • Min. illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s
    NTSC: 1/15 s to 1/50,000 s

Physical Characteristics:

  • Form Factor: Turret
  • Dimension: 126.7 × 102.41 mm(4.99” × 4.03”);  Weight: 350g
  • Horizontal Field of View: 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Operating Conditions: -40 °C - 60 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
  • Power Supply: 12 VDC±15%; Power Consumption: Max. 5.3W

Accessories:

B6 Junction Box

DS-1272ZJ-110-TRS Wall Mount

DS-1275ZJ-SUS Vertical Pole Mount

DS-1276ZJ-SUS Corner Mount

DS-1281ZJ-S Inclined Ceiling Mount

DS-1280ZJ-S Junction Box



Download Data Sheet



Color: White
