8 MP 4K UHD Dome Network Camera NC328-TD

Original price - Original price
Original price
-
Current price

Main Features

  • 2.8/4/6/8 mm fixed lens

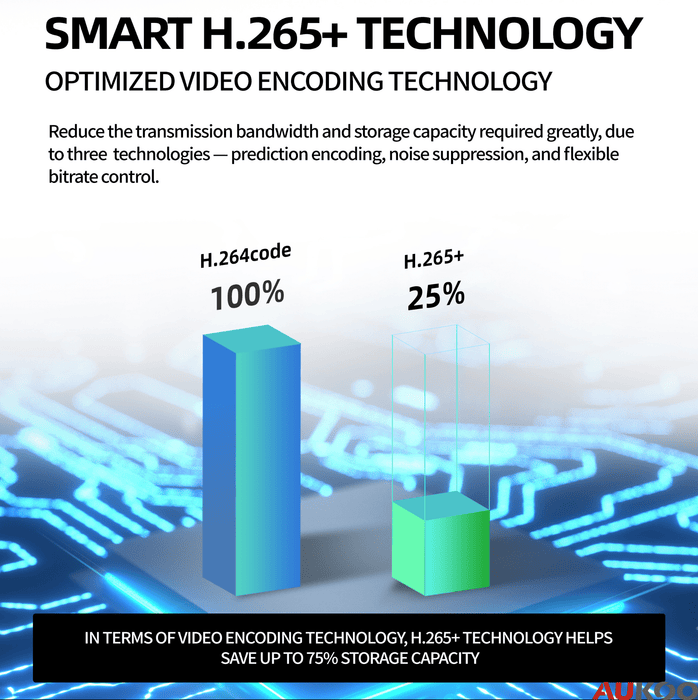

  • 265+, H.265, H.264+, H.2642
  • Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI
  • IP67, IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3 Years Warranty

Display & Graphics

  • Resolution: Max. 3840 × 2160 @15 fps
  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Min. illumination: Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • Shutter Speed: 1/3 s to 1/100, 000 s

Physical Characteristics:

  • Form Factor: Bullet
  • Dimension: 111 mm × 82.4 mm (4.4" × 3.2")
  • Weight: 500 g (1.1 lb)
  • Operating Conditions: -30 °C - 60 °C, Humidity 90% or less
  • Power Supply: 12 VDC ± 25%, Φ 5.5mm coaxial power plug

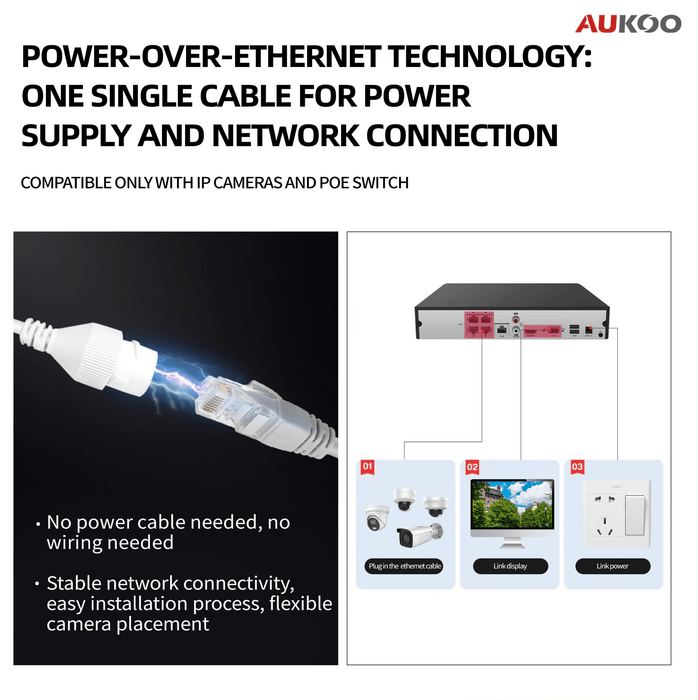

    PoE(802.3af, class 3)
  • Power Consumption: 12 VDC, 0.7 A, max. 7.5W
    PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W

Accessories:

B8 Junction Box

DS-1259ZJ Inclined Ceiling Mount

DS-1272ZJ-110 Wall Mount

DS-1272ZJ-110B Wall Mount with Junction Box

DS-1271ZJ-110 Pendant Mount

DS-1280ZJ-DM18 Junction Box

DS-1276ZJ Corner Mount

DS-1275ZJ Vertical Pole Mount

DS-1250ZJ Rain-proof Cap

Download Data Sheet
