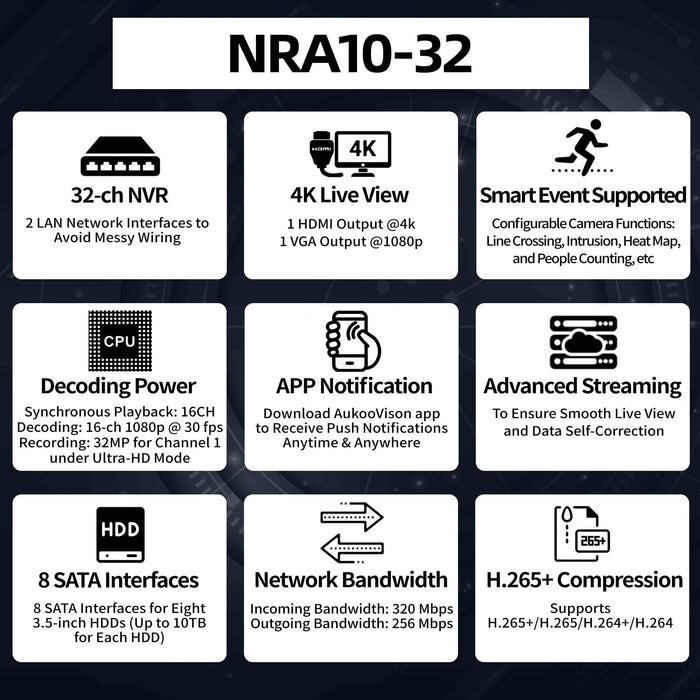

32 Channel 320/256Mbps 2LAN NVR NRA10-32

Main Features

Up to 32-ch 12MP IP cameras can be connected to address mid-to-large range requirements.

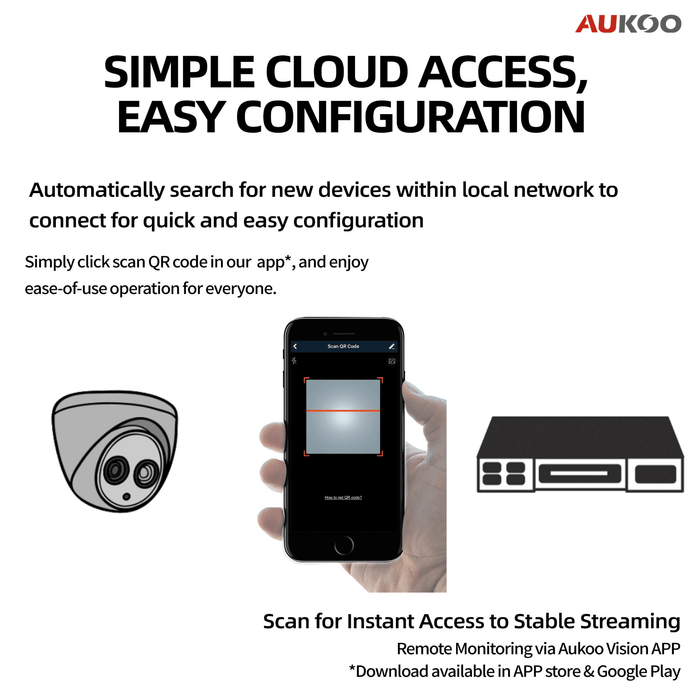

Configuration and set-up become easier and less time consuming.

• Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats
• Up to 12 MP high-definition live view, storage and playback

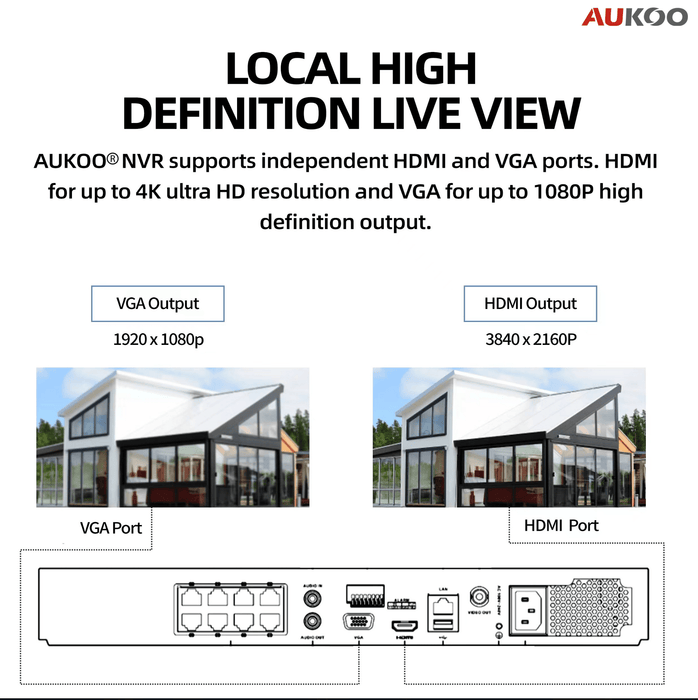

• 2 HDMI (different source) and 2 VGA (different source) interfaces
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• 3 Years Warranty

Video/Audio

• IP Video Input: 32-ch
• Incoming bandwidth 320 Mbps
  Outgoing bandwidth 256 Mbps
• Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA /720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI1/VGA1 Output Resolution: 4K (3840 × 2160)/60Hz, 4K (3840 ×2160) /30Hz, 2K(2560×1440)/60Hz,1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
• Decoding Capacity: 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (30fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Physical Characteristics:

• Dimensions: 445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
• Weight: ≤ 10 kg (22 lb)
• Working Temperature: -10 °C to +55 °C
• Power Supply: 100 to 240VAC
• Consumption(without HDD): ≤ 30 W
• Max. Power: ≤200 W
• Hard Disk: 8 SATA interfaces; up to 10 TB capacity for each disk

Download Data Sheet
