32Ch AcuAlarm 256/200Mbps 16PoE NVR NR51P6-32/S
by H-Series
Main Features
Up to 32 channels to address mid-to-large range requirements.
Configuration and set-up become easier and less time consuming.
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 12 MP high-definition live view, storage and playback
- Up to 12-ch @ 1080p decoding capacity
- Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected

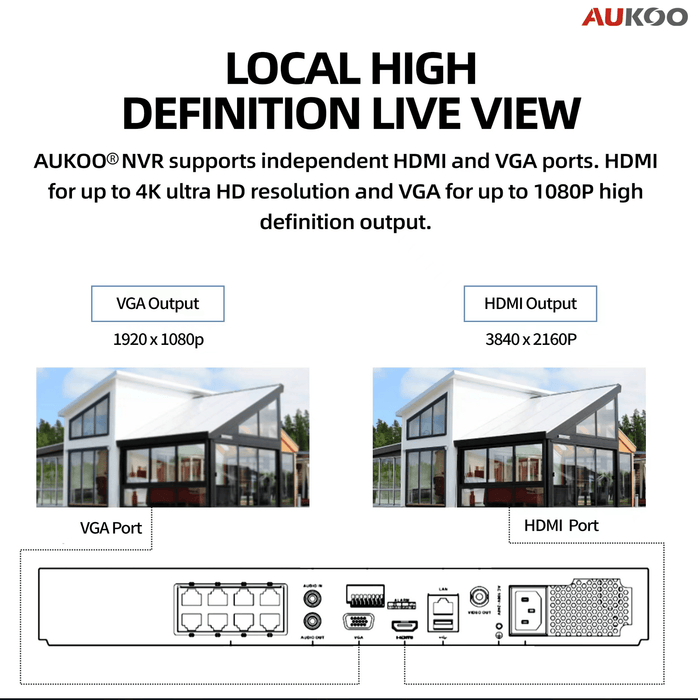

- 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output

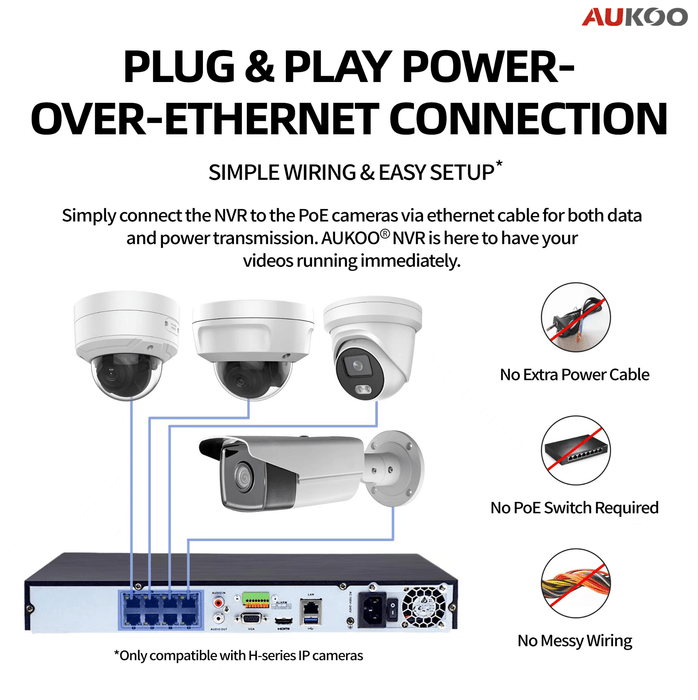

- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- 4-ch false alarm reduction through human and vehicle target classification based on deep learning
- 3 Years Warranty
Video/Audio
- IP Video Input: 32-ch
- Incoming bandwidth 256 Mbps
Outgoing bandwidth 200 Mbps - Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
- HDMI Output Resolution: 4K (3840 × 2160)/60Hz, 4K (3840 ×2160) /30Hz, 2K(2560×1440)/60Hz,1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
- Decoding Capacity: 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Physical Characteristics
- Dimensions: 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight: ≤ 5 kg (11 lb)
- Working Temperature: -10 °C to +55 °C
- Woking humidity: 10% to 90%
- Power Supply: 100 to 240 VAC, 50 to 60Hz, 1 A
- Consumption(without HDD): ≤ 30 W
- Power: ≤ 300 W

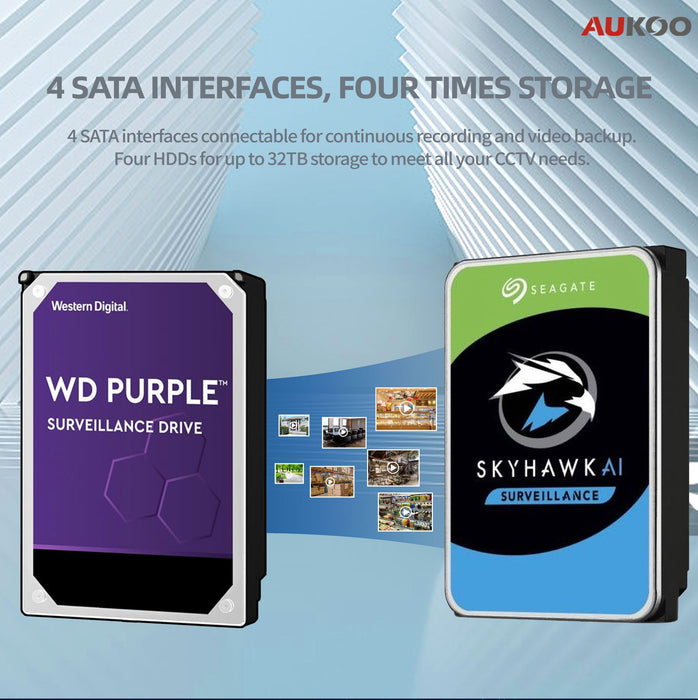

- Hard Disk: 4 SATA interfaces; up to 8 TB capacity for each disk
