8 Channel NVR (80/160Mbps 8PoE) NR32P8-8
by H-Series
Main Features
Up to 8 channels to address small-to-mid range requirements.
Configuration and set-up become easier and less time consuming.
- Third-party network cameras supported

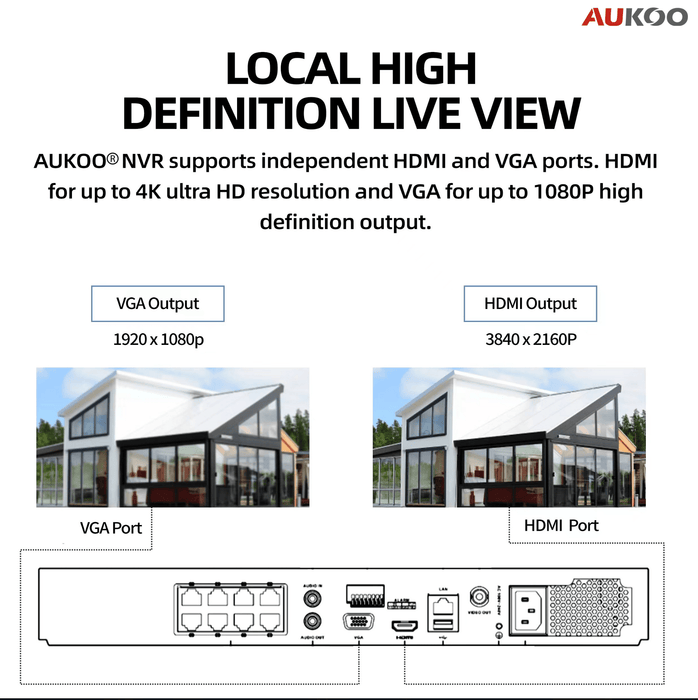

- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- Plug & Play with up to 8 independent PoE network interfaces
- Support dual-os to ensure high reliability of system running
- Support various VCA detection alarm and VCA search

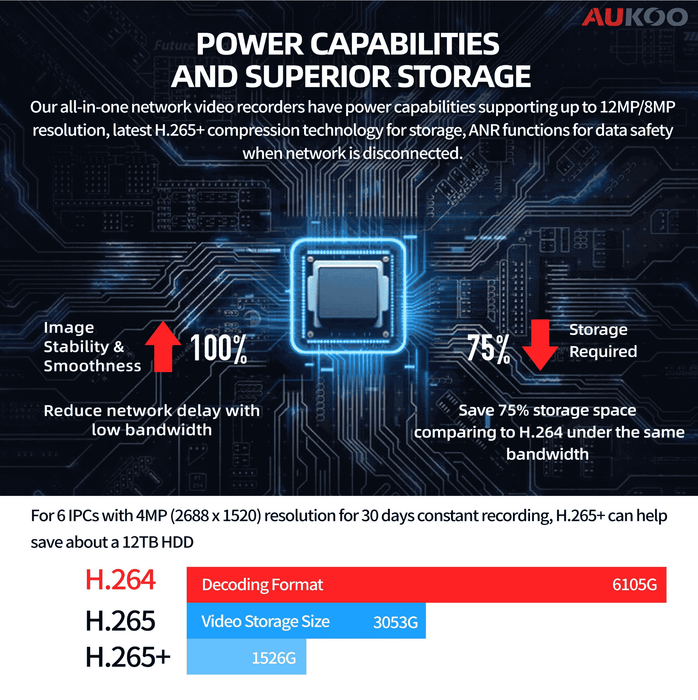

- Support H.265/H.264/MPEG4 video formats
- 3 Years Warranty
Video/Audio
- IP Video Input: 8-ch
- Incoming bandwidth 80 Mbps
Outgoing bandwidth 160 Mbps - Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
- HDMI Output Resolution: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
- Decoding Capacity: 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Physical Characteristics
- Dimensions: 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
- Weight: ≤ 3 kg (6.6 lb)
- Working Temperature: -10 °C to +55 °C
- Woking humidity: 10% to 90%
- Power Supply: 100 to 240 VAC, 50 to 60Hz, 1 A
- Consumption(without HDD): ≤ 15 W
- Power: ≤ 120 W

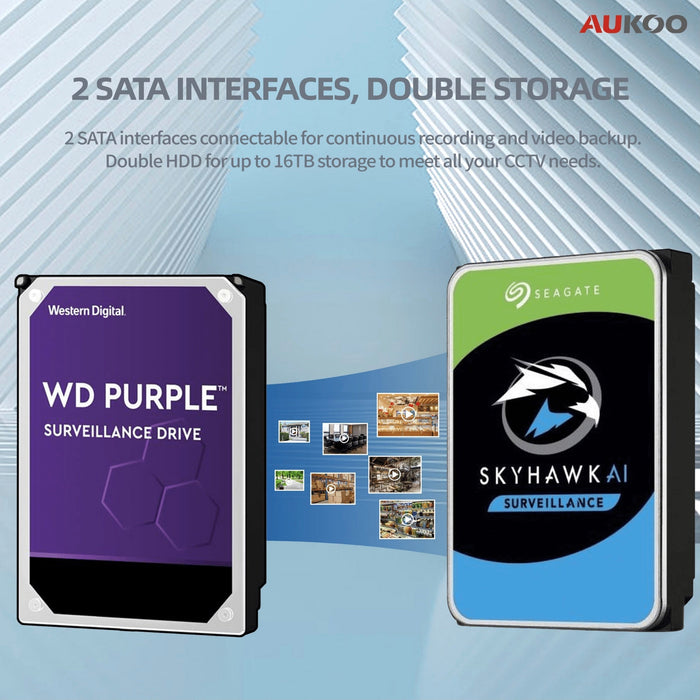

- Hard Disk: 2 SATA interfaces; up to 6 TB capacity for each disk
